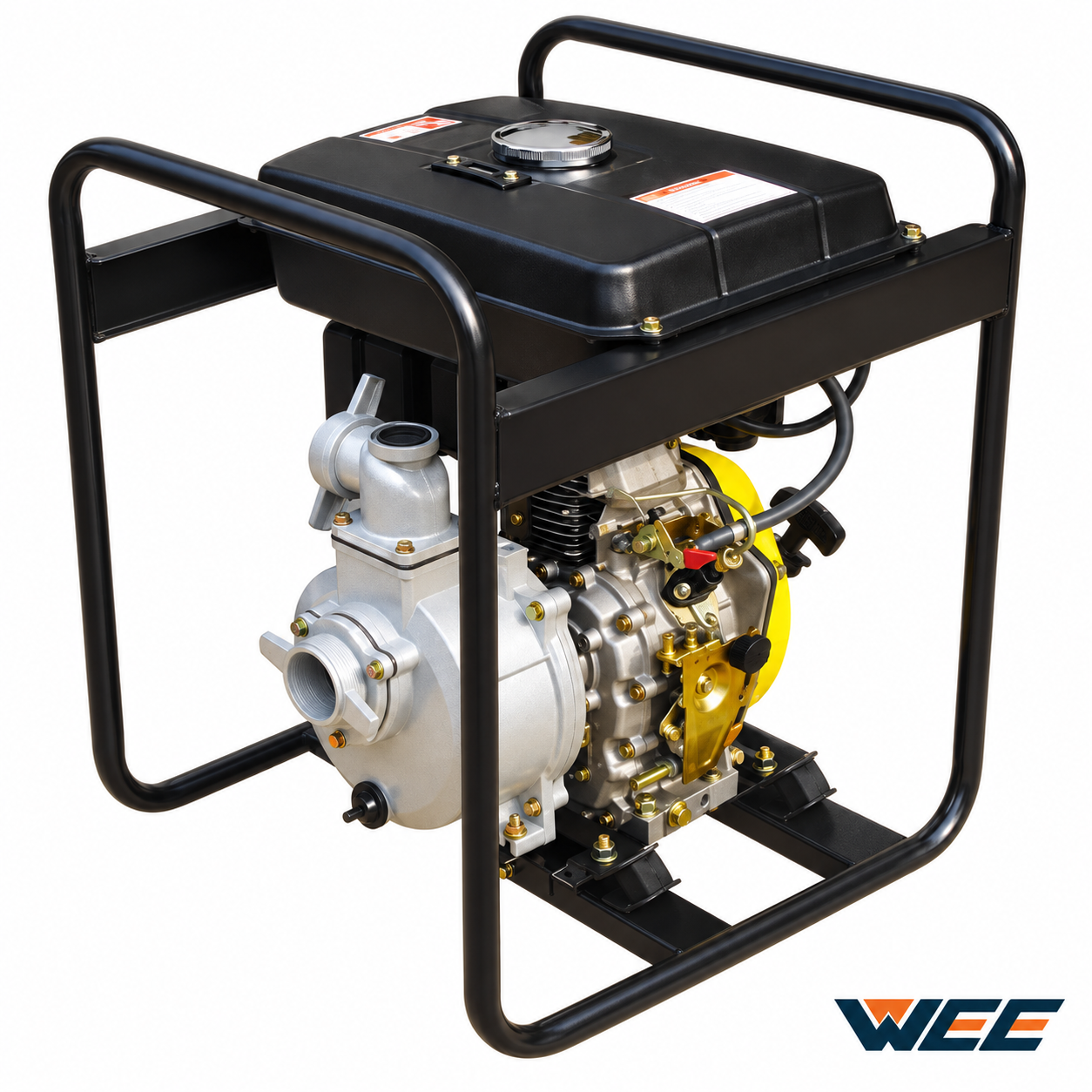

Diesel Water Pumps · white-background WEE product design image

Product design shown. Available configurations are listed in the specifications. Images represent product design, not every power configuration.

WEE / DIESEL WATER PUMPS

MDP2 / MDP3 / MDP4

Diesel Water Pumps

Compare exact model specifications, then select a configuration for your enquiry.

Model & configuration

MDP2

36Maximum flow (m³/h)

26Maximum head (m)

28Operating weight (kg)

Power source: Chinese diesel engine
Power: 3.1 kW

Enquire on WhatsApp

MDP2 is included in your enquiry draft.

View detailed specifications

01 / TECHNICAL DATA

MDP2. In detail.

Specifications for this exact configuration.

Power source: Chinese diesel engine
Power (kW): 3.1
Operating weight (kg): 28
Engine type: Air-cooled, 4-stroke, single cylinder
Suction port diameter (mm): 50
Discharge port diameter (mm): 50
Maximum flow (m³/h): 36
Maximum head (m): 26
Maximum suction lift (m): 8
Displacement (cc): 211

02 / MODEL OPTIONS

Compare your options.

Model-specific details, kept separate.

MDP2

Chinese diesel engine

Maximum flow (m³/h): 36
Maximum head (m): 26

Selected configuration

MDP3

Chinese diesel engine

Maximum flow (m³/h): 60
Maximum head (m): 25

MDP4

Chinese diesel engine

Maximum flow (m³/h): 96
Maximum head (m): 28
