Honda GXR120
- Engine power
- 3 kW
- Operating mass
- 77 kg
- Impact force
- 16 kN
WEE / PRODUCT VIEWMR77H2

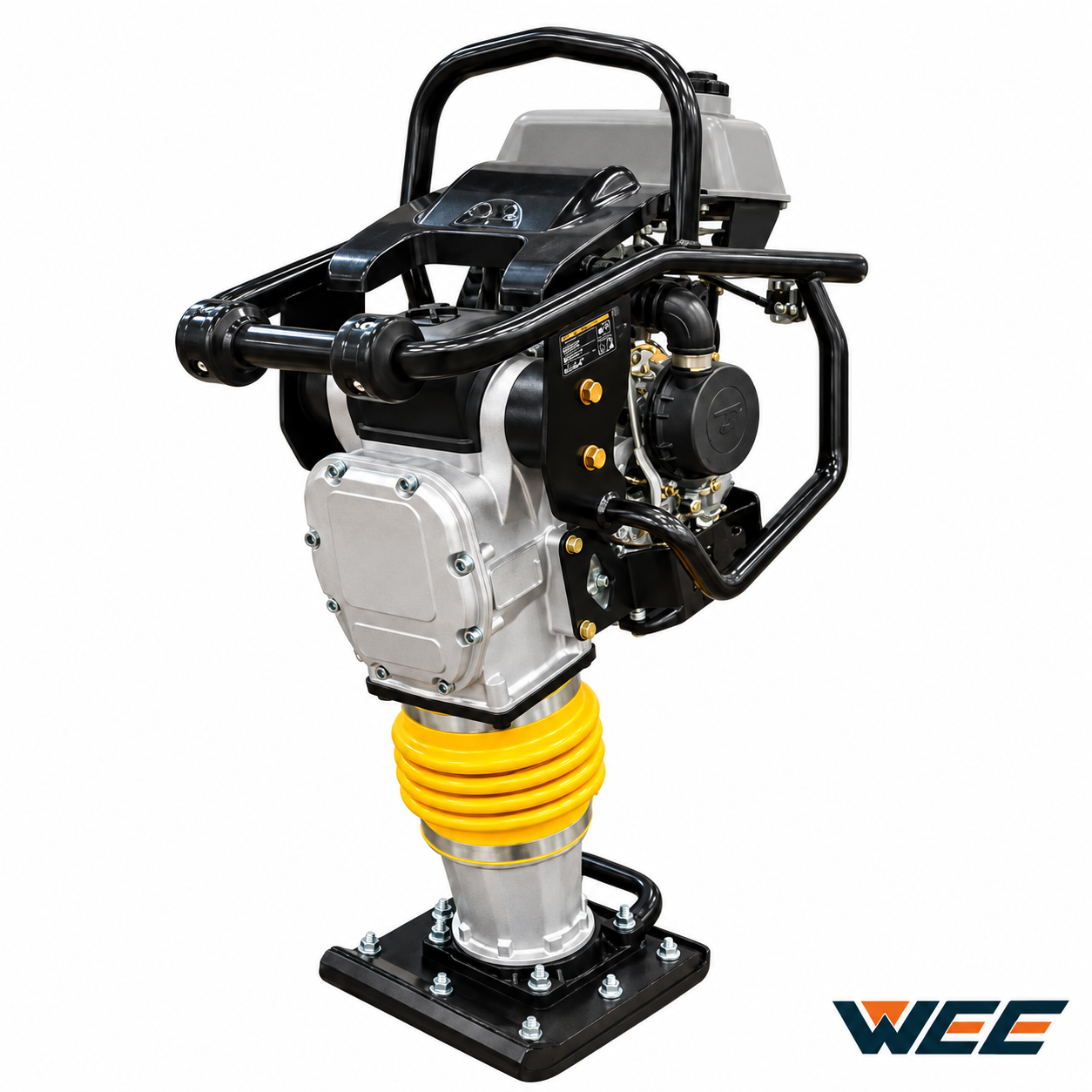

MR77H2 shown. MR77H2 and MR77C are available with the engine options listed below.
WEE / FLAGSHIP SERIES
MR77 Series
Tamping Rammer
The flagship MR77 range delivers 16 kN impact force, with Honda GXR120 and Rato RM120 engine options.
MR77H2Gasoline
16Impact force (kN)
77Operating mass (kg)
330 × 285Shoe size L × W (mm)
- Engine power
- 3 kW
- Engine
- Honda GXR120
01 / TECHNICAL DATA
MR77H2. In detail.
Specifications for the selected model.
- Impact force (kN)
- 16
- Operating mass (kg)
- 77
- Percussion rate (blows/min)
- 650–695
- Jumping stroke (mm)
- 40–85
- Shoe size L × W (mm)
- 330 × 285
- Machine dimensions (mm)
- 430 × 760 × 1120
- Fuel tank capacity (L)
- 2.1
02 / POWER OPTIONS
A configuration for your market.
Choose a model to see its own specifications and enquiry details.
Rato RM120
- Engine power
- 3 kW
- Operating mass
- 77 kg
- Impact force
- 16 kN
LET’S TALK MR77H2
Enquire about MR77H2Build your next order with WEE.
Share your quantity and destination to start a focused quotation.
