Chinese diesel 173F
- Engine power
- 3.7 kW
- Operating mass
- 94 kg
WEE / PRODUCT VIEWMS90A

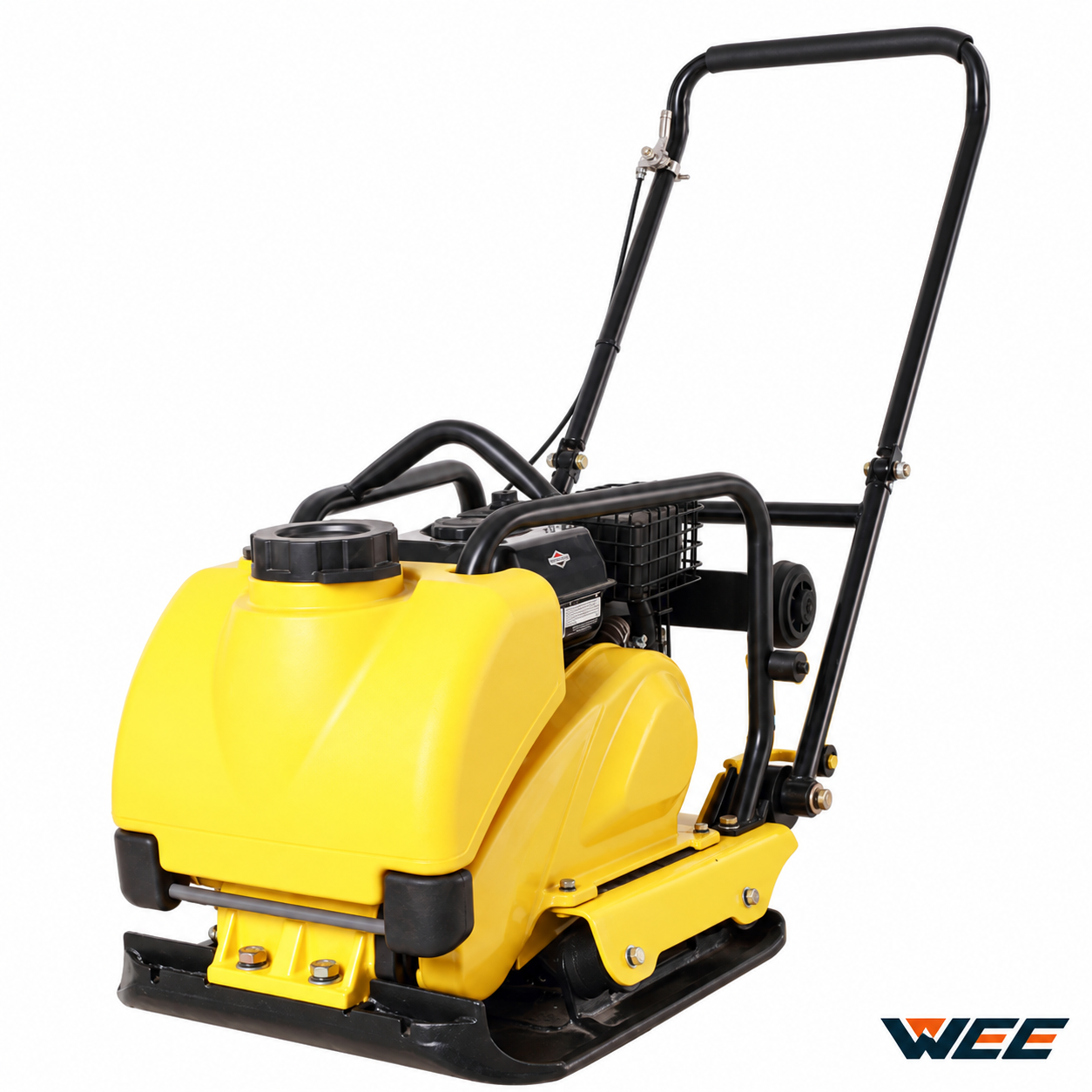

Product shown: MS90A. Engine and supplied accessories depend on the selected configuration.
WEE / FORWARD · JAPANESE-STYLEView detailed specifications
MS90A / MS90B / MS90C / MS90D
Forward Plate Compactor
Compare the model specifications and choose the engine configuration for your next enquiry.
13Centrifugal force (kN)
5500Vibration frequency (vpm)
53 × 50Plate size L × W (cm)
01 / TECHNICAL DATA
Specifications that matter.
MS90 · model-specific specifications.
- Centrifugal force (kN)
- 13
- Vibration frequency (vpm)
- 5500
- Plate size L × W (cm)
- 53 × 50
- Compaction depth (cm)
- 30
- Travel speed
- 40 cm/s
- Working efficiency (m²/h)
- 660
- Machine dimensions L × W × H (cm)
- 110 × 83 × 50
Compaction depth and working efficiency are catalogue reference figures; actual results depend on material and site conditions.
02 / ENGINE OPTIONS
MS90. Your choice of power.
Power and operating mass are listed for each engine-equipped configuration.
Chinese petrol 200F
- Engine power
- 4.8 kW
- Operating mass
- 84 kg
KASEI EX17
- Engine power
- 4.2 kW
- Operating mass
- 83 kg
Robin EY20
- Engine power
- 3.7 kW
- Operating mass
- 83 kg
Honda GX160
- Engine power
- 4 kW
- Operating mass
- 83 kg
B&S I/C 1062
- Engine power
- 3.7 kW
- Operating mass
- 83 kg
03 / BASE-PLATE DESIGNS
The detail makes the difference.
- MS90A
- Cast iron base plate

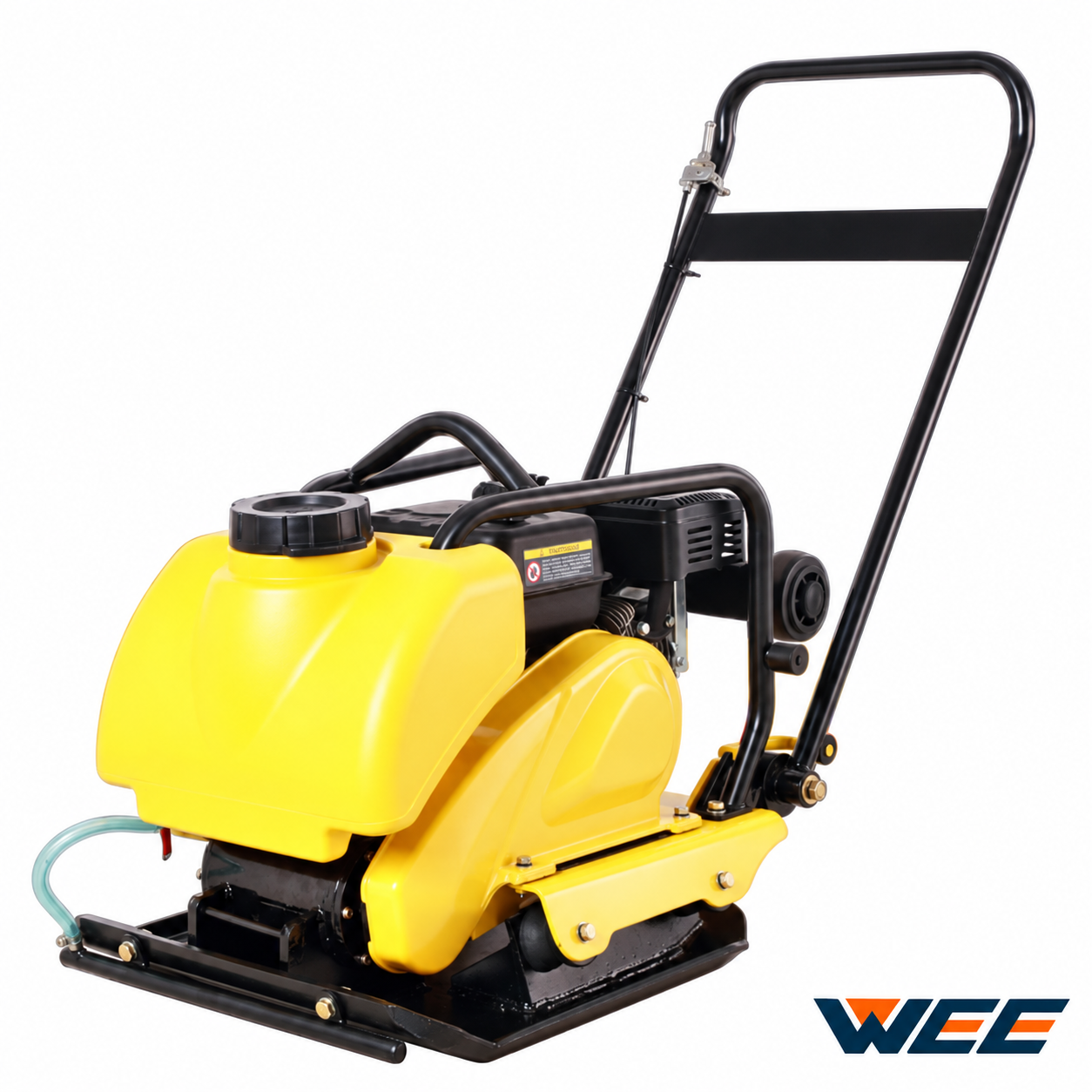

- MS90B
- Welded base plate

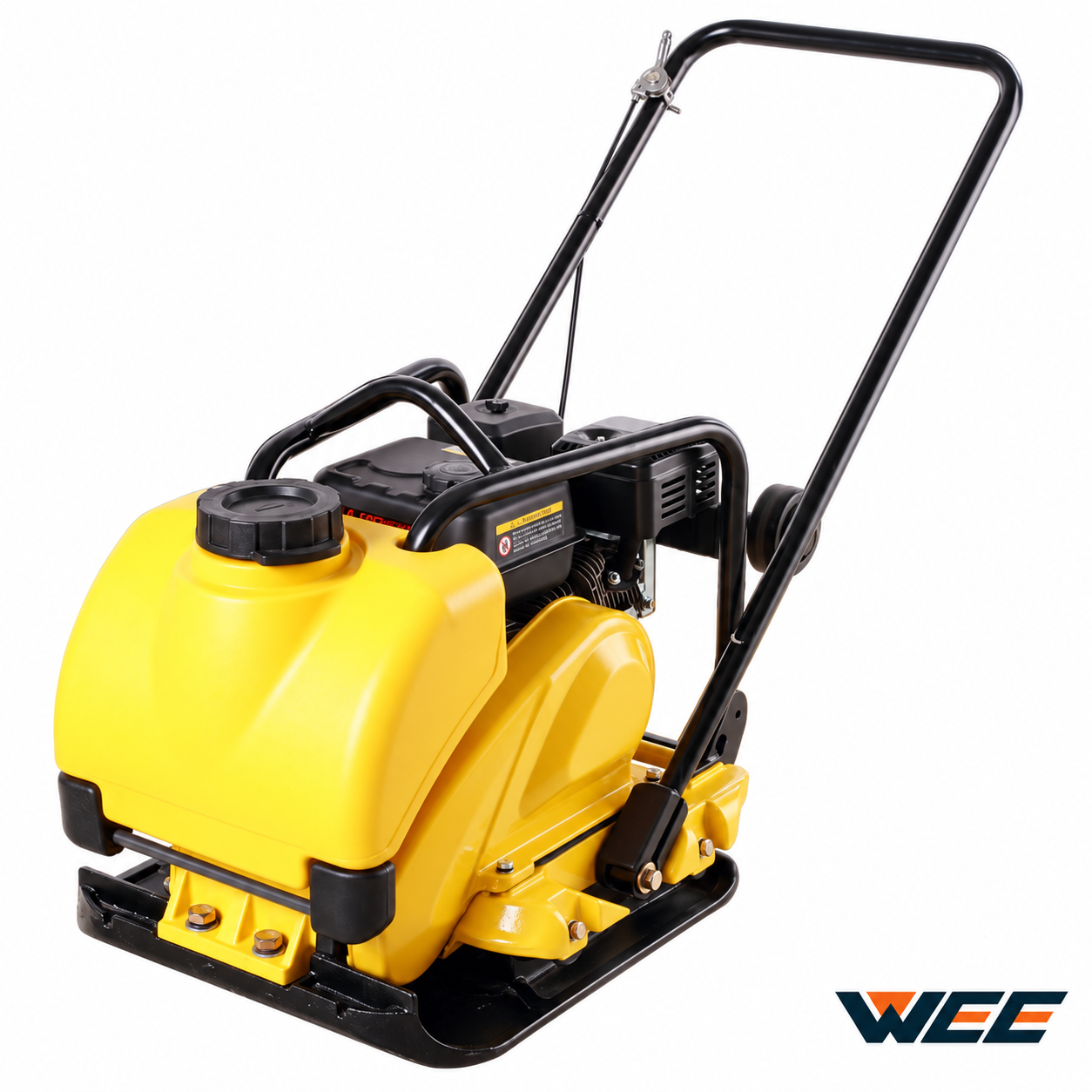

- MS90C
- Cast iron base plate and cast iron engine mounting plate

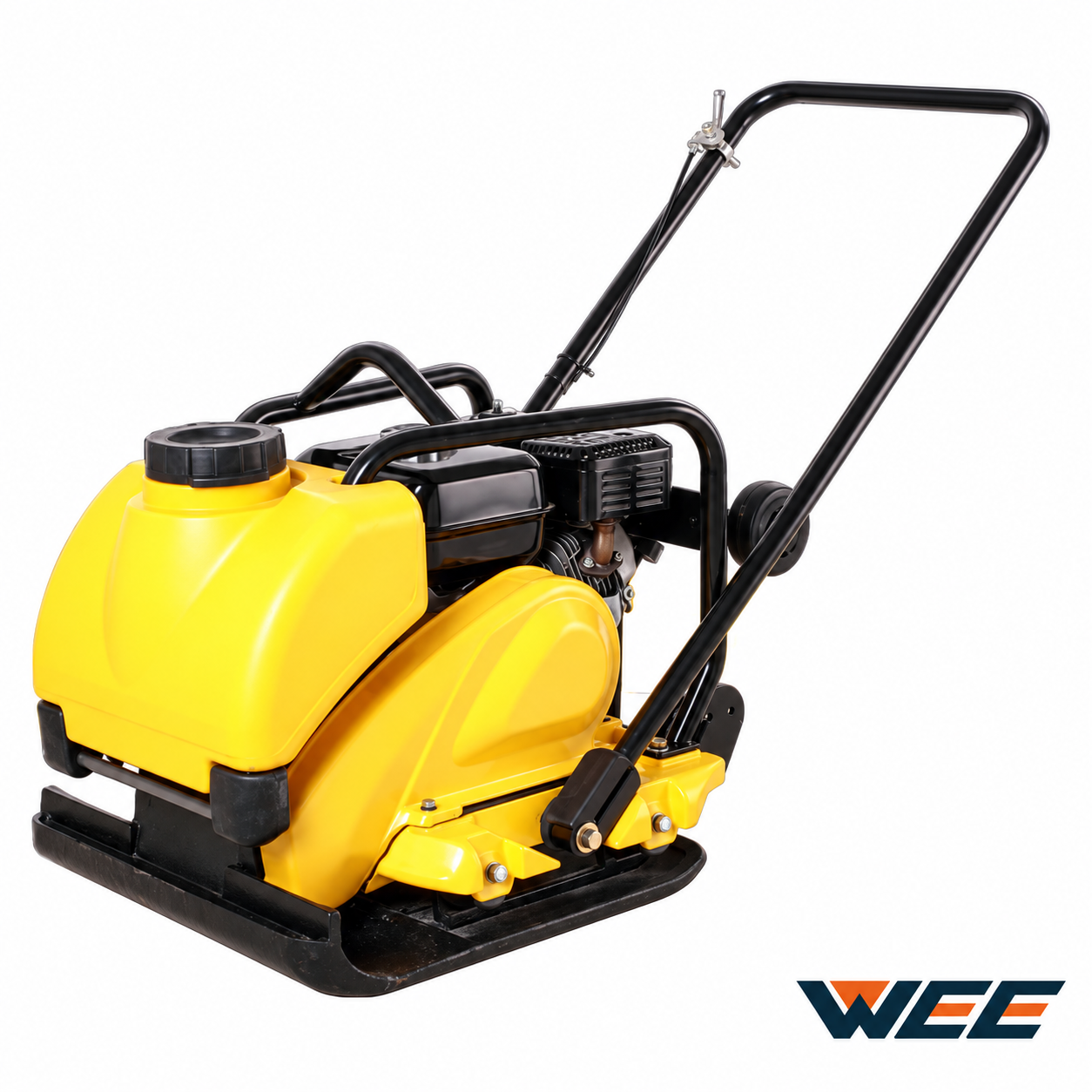

- MS90D
- Integrated vibrator and base plate
LET’S TALK MS90
Enquire about MS90Build your next order with WEE.
Share your quantity and destination to start a focused quotation.
