WEE / PRODUCT VIEWSG70H

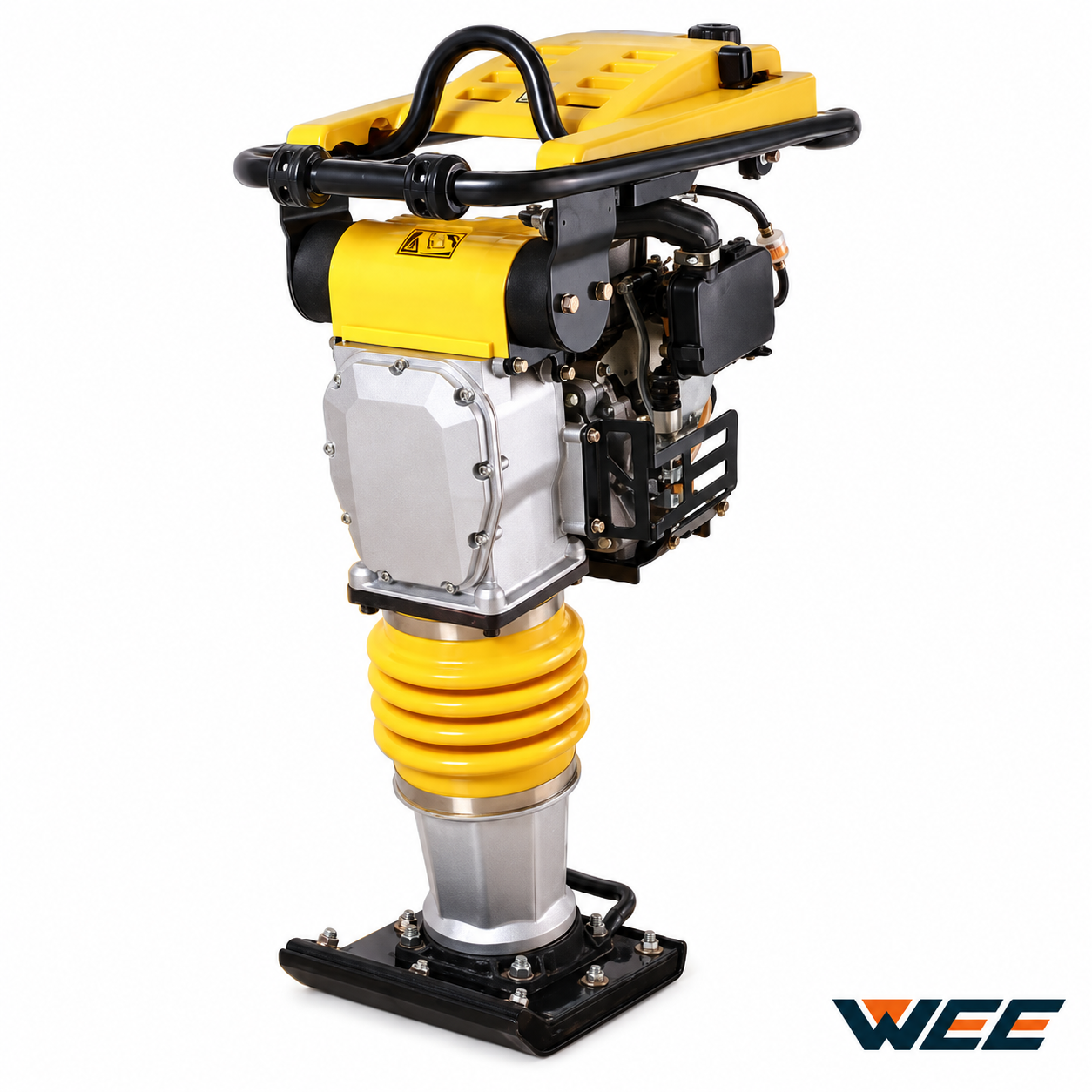

SG70H shown. SG60, SG70 and SG80 models have separate specifications and engine options.

WEE / VERSATILE SERIES

SG60 / SG70 / SG80 Series

Tamping Rammer

Gasoline and diesel tamping rammer options across the SG60, SG70 and SG80 range. Choose the model and engine configuration for your work.

Model & engine configuration

SG70HGasoline

14Impact force (kN)

63Operating mass (kg)

330 × 285Shoe size L × W (mm)

Engine power: 2.2 kW
Engine: Honda GX100

Enquire on WhatsApp

Your selected model and power configuration are included in the draft.

View detailed specifications

01 / TECHNICAL DATA

SG70H. In detail.

Specifications for the selected model.

Impact force (kN): 14
Operating mass (kg): 63
Percussion rate (blows/min): 650–695
Jumping stroke (mm): 40–85
Shoe size L × W (mm): 330 × 285
Machine dimensions (mm): 430 × 760 × 1120
Fuel tank capacity (L): 2.2

02 / POWER OPTIONS

A configuration for your market.

Choose a model to see its own specifications and enquiry details.

SG60 configurations

SG60H · Gasoline

Honda GX100

Engine power: 2.2 kW
Operating mass: 58 kg
Impact force: 11 kN

View SG60H

SG60R · Gasoline

Robin EH09

Engine power: 2.1 kW
Operating mass: 58 kg
Impact force: 11 kN

View SG60R

SG70 configurations

SG70H · Gasoline

Honda GX100

Engine power: 2.2 kW
Operating mass: 63 kg
Impact force: 14 kN

Selected configuration

SG70R1 · Gasoline

Robin EH10

Engine power: 2.2 kW
Operating mass: 63 kg
Impact force: 14 kN

View SG70R1

SG70LC · Gasoline

Loncin 165F-3H

Engine power: 3 kW
Operating mass: 71 kg
Impact force: 14 kN

View SG70LC

SG70C · Gasoline

Chinese petrol engine

Engine power: 3 kW
Operating mass: 71 kg
Impact force: 14 kN

View SG70C

SG80 configurations

SG80H · Gasoline

Honda GX160

Engine power: 4 kW
Operating mass: 75 kg
Impact force: 14 kN

View SG80H

SG80H2 · Gasoline

Honda GXR120

Engine power: 3 kW
Operating mass: 68 kg
Impact force: 14 kN

View SG80H2

SG80R1 · Gasoline

Robin EH12-2D

Engine power: 3 kW
Operating mass: 68 kg
Impact force: 14 kN

View SG80R1

SG80R2 · Gasoline

Robin EY20

Engine power: 3.7 kW
Operating mass: 71 kg
Impact force: 14 kN

View SG80R2

SG80LC · Gasoline

Loncin 168F-2H

Engine power: 4.2 kW
Operating mass: 73 kg
Impact force: 14 kN

View SG80LC

SG80D · Diesel

Chinese diesel engine 170

Engine power: 3.1 kW
Operating mass: 77 kg
Impact force: 14 kN

View SG80D
