Permanent magnet brushless motor
- Rated motor power
- 2.1 kW
- Operating mass
- 70 kg
- Impact force
- 14 kN
WEE / PRODUCT VIEWSG70E

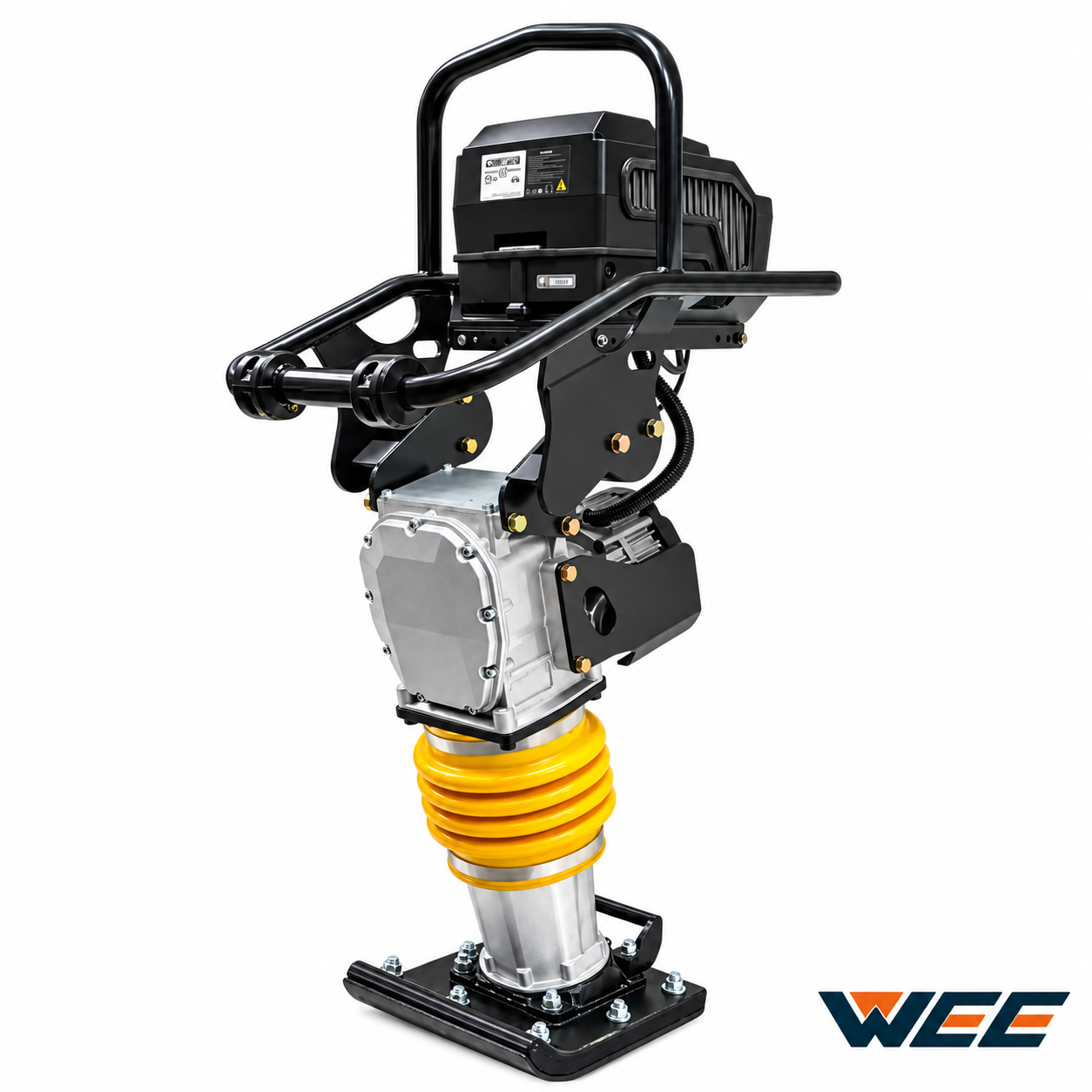

SG70E lithium battery model shown.
WEE / LITHIUM BATTERY SERIES
SG70E Battery Tamping Rammer
Battery Tamping Rammer
A lithium battery tamping rammer with a permanent magnet brushless motor and 14 kN impact force.
SG70ELithium-ion battery
14Impact force (kN)
70Operating mass (kg)
330 × 285Shoe size L × W (mm)
- Rated motor power
- 2.1 kW
- Motor
- Permanent magnet brushless motor
01 / TECHNICAL DATA
SG70E. In detail.
Specifications for the selected model.
- Impact force (kN)
- 14
- Operating mass (kg)
- 70
- Percussion rate (blows/min)
- 650–695
- Jumping stroke (mm)
- 40–85
- Shoe size L × W (mm)
- 330 × 285
- Machine dimensions (mm)
- 800 × 460 × 1200
- Motor type
- Permanent magnet brushless motor
- Rated power (kW)
- 2.1
- Rated speed (rpm)
- 3800
- Maximum power (kW)
- 2.5
- Maximum torque (N·m / rpm)
- 7.5 / 1850
- Battery type
- Rechargeable lithium-ion battery
- Battery dimensions (mm)
- 322 × 231 × 162
02 / ELECTRIC POWER
Motor and battery details.
Technical motor and battery data are listed above.
