WEE / PRODUCT DESIGNTF500

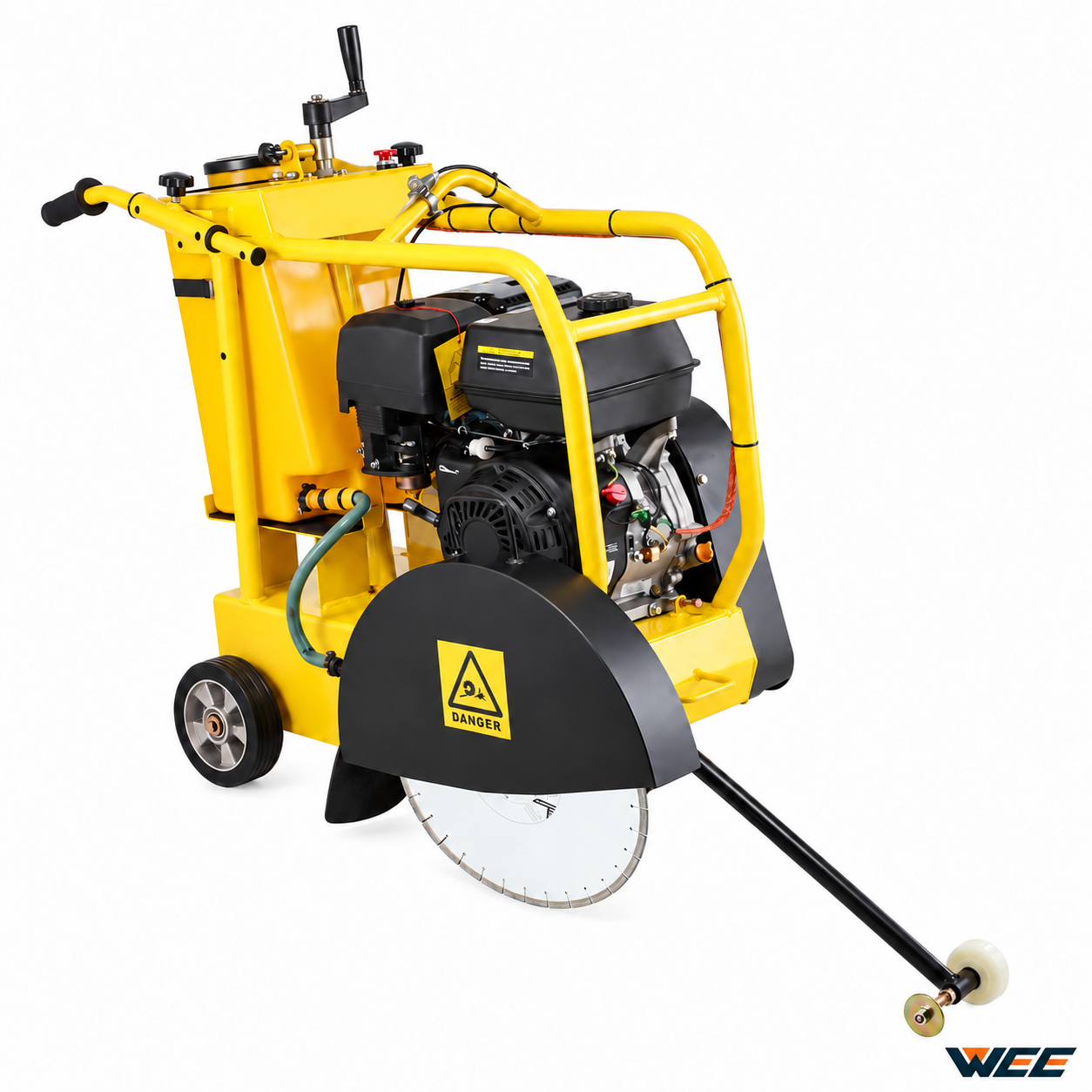

TF500 design shown. Engine and model options are listed separately.

WEE / WESTERN-STYLE FLOOR SAWS

TF500 / TF500B

Floor Saw

Choose the exact model and engine to compare its specifications and start your enquiry.

Model & engine configuration

TF500-4Gasoline

185Maximum cutting depth (mm)

350–500Blade diameter (mm)

110Weight (kg)

Engine power: 9.6 kW
Engine: Honda GX390

Enquire on WhatsApp

Your selected model and engine are included in the draft.

View detailed specifications

01 / TECHNICAL DATA

TF500-4. In detail.

Specifications for this exact configuration.

Engine: Honda GX390
Fuel type: Gasoline
Power (kW): 9.6
Weight (kg): 110
Maximum cutting depth (mm): 185
Blade diameter (mm): 350–500
Depth adjustment: Handwheel
Travel system: Manual push
Water tank capacity (L): 35
Machine dimensions (mm): 1160 × 560 × 980

02 / POWER OPTIONS

A configuration for your market.

Each model retains its own engine, power and technical data.

TF500

TF500-1 · Diesel

Chinese diesel engine 186F

Engine power: 6.6 kW
Maximum cutting depth (mm): 185
Blade diameter (mm): 350–500

View TF500-1

TF500-2 · Gasoline

Chinese petrol engine 420F

Engine power: 10.2 kW
Maximum cutting depth (mm): 185
Blade diameter (mm): 350–500

View TF500-2

TF500-3 · Gasoline

KASEI EX40

Engine power: 10.2 kW
Maximum cutting depth (mm): 185
Blade diameter (mm): 350–500

View TF500-3

TF500-4 · Gasoline

Honda GX390

Engine power: 9.6 kW
Maximum cutting depth (mm): 185
Blade diameter (mm): 350–500

Selected configuration

TF500-5 · Gasoline

B&S I/C 25T2

Engine power: 9.6 kW
Maximum cutting depth (mm): 185
Blade diameter (mm): 350–500

View TF500-5

TF500B

TF500B-1 · Diesel

Chinese diesel engine 186F

Engine power: 6.6 kW
Maximum cutting depth (mm): 185
Blade diameter (mm): 350–500

View TF500B-1

TF500B-2 · Gasoline

Chinese petrol engine 420F

Engine power: 10.2 kW
Maximum cutting depth (mm): 185
Blade diameter (mm): 350–500

View TF500B-2

TF500B-3 · Gasoline

KASEI EX40

Engine power: 10.2 kW
Maximum cutting depth (mm): 185
Blade diameter (mm): 350–500

View TF500B-3

TF500B-4 · Gasoline

Honda GX390

Engine power: 9.6 kW
Maximum cutting depth (mm): 185
Blade diameter (mm): 350–500

View TF500B-4

TF500B-5 · Gasoline

B&S I/C 25T2

Engine power: 9.6 kW
Maximum cutting depth (mm): 185
Blade diameter (mm): 350–500

View TF500B-5

LET’S TALK TF500-4

Build your next order with WEE.

Share your quantity and destination for a focused quotation.

Enquire about TF500-4

Enquire about TF500-4WhatsApp
