Chinese diesel engine 192F
- Engine power
- 9.3 kW
- Maximum cutting depth (mm)
- 185
- Blade diameter (mm)
- 350–500
WEE / PRODUCT DESIGNTF500D

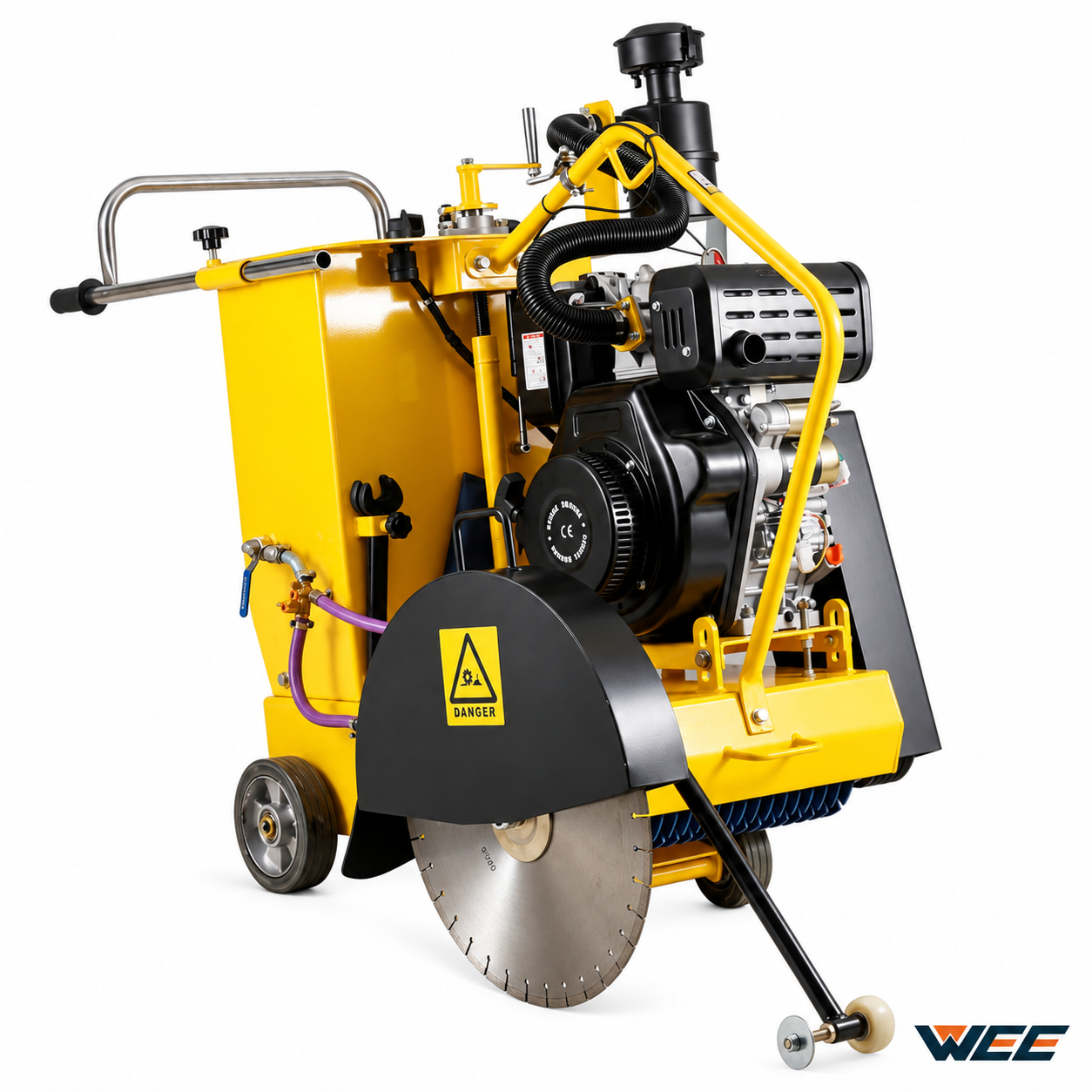

TF500D design shown. Engine and model options are listed separately.
WEE / CONCRETE CUTTER & EMBOSSING MACHINE
TF500D
Concrete Cutter & Embossing Machine
Choose the exact model and engine to compare its specifications and start your enquiry.
TF500D-4Gasoline
185Maximum cutting depth (mm)
350–500Blade diameter (mm)
144Weight (kg)
- Engine power
- 9.6 kW
- Engine
- Honda GX390
01 / TECHNICAL DATA
TF500D-4. In detail.
Specifications for this exact configuration.
- Engine
- Honda GX390
- Fuel type
- Gasoline
- Power (kW)
- 9.6
- Weight (kg)
- 144
- Maximum cutting depth (mm)
- 185
- Blade diameter (mm)
- 350–500
- Depth adjustment
- Handwheel
- Travel system
- Manual push / semi-self-propelled
- Water tank capacity (L)
- 35
- Machine dimensions (mm)
- 1300 × 630 × 990
- Embossing blade diameter (mm)
- 180
- Groove depth (mm)
- 1–8
- Total grooving width (mm)
- 336
02 / POWER OPTIONS
A configuration for your market.
Each model retains its own engine, power and technical data.
Chinese petrol engine 420F
- Engine power
- 9.6 kW
- Maximum cutting depth (mm)
- 185
- Blade diameter (mm)
- 350–500
KASEI EX40
- Engine power
- 8.6 kW
- Maximum cutting depth (mm)
- 185
- Blade diameter (mm)
- 350–500
Honda GX390
- Engine power
- 9.6 kW
- Maximum cutting depth (mm)
- 185
- Blade diameter (mm)
- 350–500
B&S I/C 25T2
- Engine power
- 9.6 kW
- Maximum cutting depth (mm)
- 185
- Blade diameter (mm)
- 350–500
LET’S TALK TF500D-4
Enquire about TF500D-4Build your next order with WEE.
Share your quantity and destination for a focused quotation.
