Chinese diesel 173F
- Engine power
- 3.7 kW
- Operating mass
- 107 kg
WEE / PRODUCT VIEWTP100

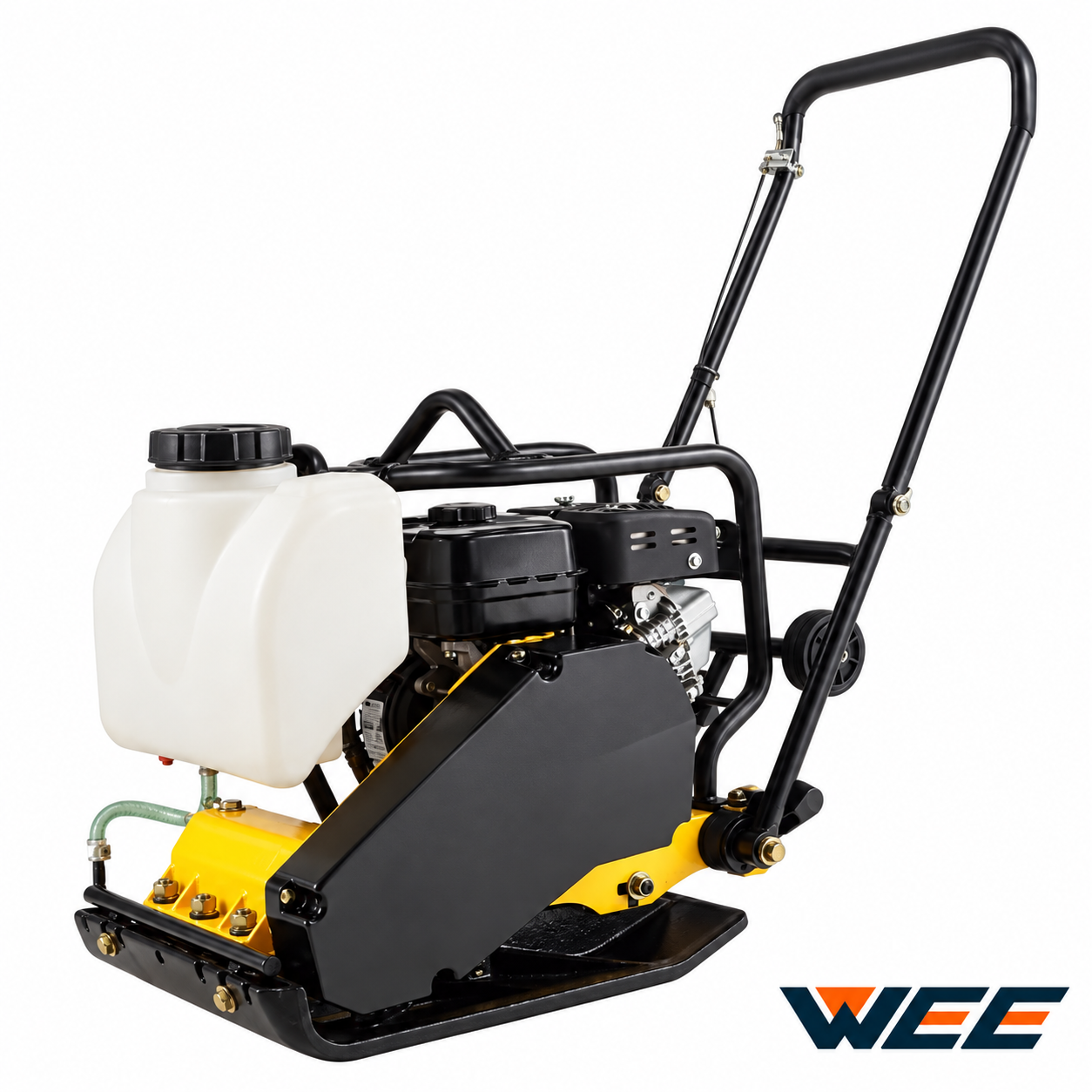

Product shown: TP100. Engine and supplied accessories depend on the selected configuration.
WEE / FORWARD · WESTERN-STYLEView detailed specifications
TP100
Forward Plate Compactor
Compare the model specifications and choose the engine configuration for your next enquiry.
18Centrifugal force (kN)
5400Vibration frequency (vpm)
55 × 45Plate size L × W (cm)
01 / TECHNICAL DATA
Specifications that matter.
TP100 · model-specific specifications.
- Centrifugal force (kN)
- 18
- Vibration frequency (vpm)
- 5400
- Plate size L × W (cm)
- 55 × 45
- Travel speed
- 20 m/min
- Machine dimensions L × W × H (cm)
- 80 × 45 × 59
02 / ENGINE OPTIONS
TP100. Your choice of power.
Power and operating mass are listed for each engine-equipped configuration.
Chinese petrol 200F
- Engine power
- 4.8 kW
- Operating mass
- 97 kg
KASEI EX17
- Engine power
- 4.2 kW
- Operating mass
- 96 kg
Robin EY20
- Engine power
- 3.7 kW
- Operating mass
- 96 kg
Honda GX160
- Engine power
- 4 kW
- Operating mass
- 96 kg
B&S I/C 1062
- Engine power
- 3.7 kW
- Operating mass
- 96 kg
LET’S TALK TP100
Enquire about TP100Build your next order with WEE.
Share your quantity and destination to start a focused quotation.
