HR diesel 186FE
- Engine power
- 7.4 kW
- Operating mass
- 350 kg
WEE / PRODUCT VIEWTP350
Shared series design shown; specifications are listed separately for each model.
WEE / HYDRAULIC REVERSIBLEView detailed specifications
TP350 / TP400 / TP450 / TP500

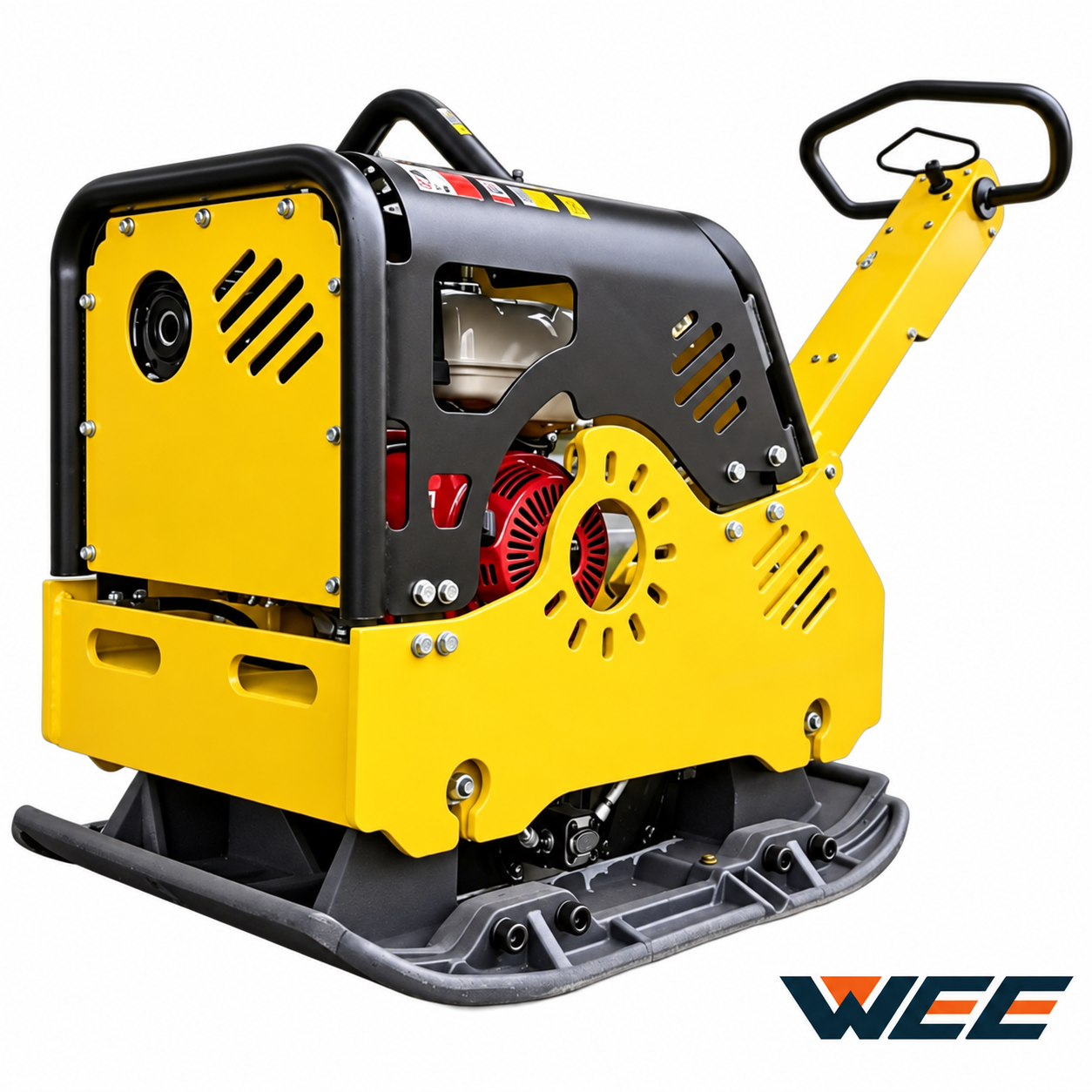

Hydraulic Reversible Plate Compactor
Compare the model specifications and choose the engine configuration for your next enquiry.
42Centrifugal force (kN)
4100Vibration frequency (vpm)
90 × 61 (with two 6.5 cm extension plates); 90 × 48 (without extensions)Plate size L × W (cm)
01 / TECHNICAL DATA
Specifications that matter.
TP350 · model-specific specifications.
- Centrifugal force (kN)
- 42
- Vibration frequency (vpm)
- 4100
- Plate size L × W (cm)
- 90 × 61 (with two 6.5 cm extension plates); 90 × 48 (without extensions)
- Compaction depth (cm)
- 80
- Travel speed
- 30 m/min
Compaction depth and working efficiency are catalogue reference figures; actual results depend on material and site conditions.
02 / ENGINE OPTIONS
TP350. Your choice of power.
Power and operating mass are listed for each engine-equipped configuration.
Chinese petrol G420
- Engine power
- 10.2 kW
- Operating mass
- 325 kg
Honda GX390
- Engine power
- 9.6 kW
- Operating mass
- 325 kg
Honda GX390U (EPA)
- Engine power
- 9.6 kW
- Operating mass
- 325 kg
LET’S TALK TP350
Enquire about TP350Build your next order with WEE.
Share your quantity and destination to start a focused quotation.
