Chinese diesel 173F
- Engine power
- 3.7 kW
- Operating mass
- 89 kg
WEE / PRODUCT VIEWTP85

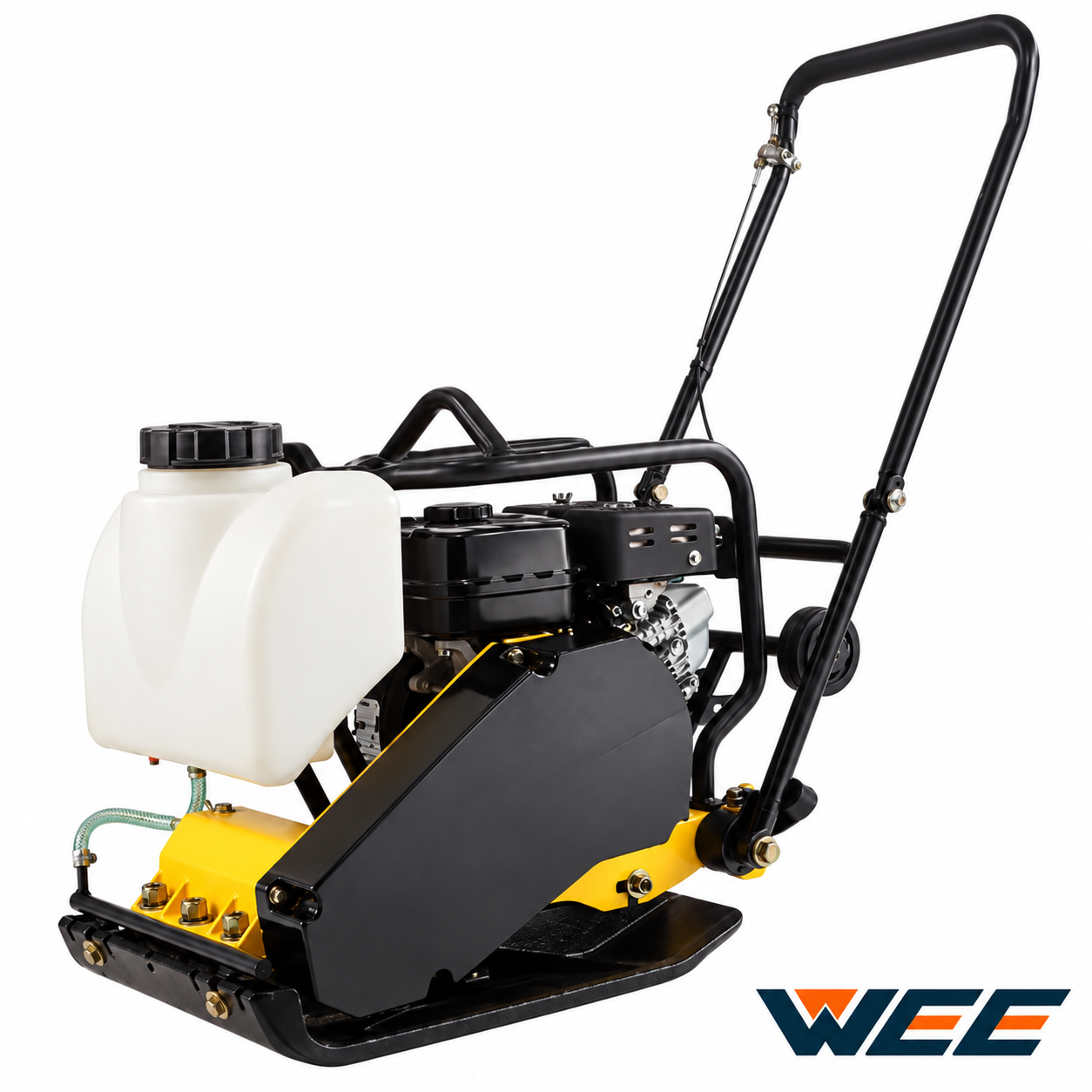

Product shown: TP85. Engine and supplied accessories depend on the selected configuration.
WEE / FORWARD · WESTERN-STYLEView detailed specifications
TP85 / TP85B
Forward Plate Compactor
Compare the model specifications and choose the engine configuration for your next enquiry.
12Centrifugal force (kN)
5400Vibration frequency (vpm)
55 × 41Plate size L × W (cm)
01 / TECHNICAL DATA
Specifications that matter.
TP85 · model-specific specifications.
- Centrifugal force (kN)
- 12
- Vibration frequency (vpm)
- 5400
- Plate size L × W (cm)
- 55 × 41
- Travel speed
- 22 m/min
- Machine dimensions L × W × H (cm)
- 80 × 41 × 59
02 / ENGINE OPTIONS
TP85. Your choice of power.
Power and operating mass are listed for each engine-equipped configuration.
Chinese petrol 200F
- Engine power
- 4.8 kW
- Operating mass
- 79 kg
KASEI EX17
- Engine power
- 4.2 kW
- Operating mass
- 78 kg
Robin EY20
- Engine power
- 3.7 kW
- Operating mass
- 78 kg
Honda GX160
- Engine power
- 4 kW
- Operating mass
- 78 kg
B&S I/C 1062
- Engine power
- 3.7 kW
- Operating mass
- 78 kg
03 / BASE-PLATE DESIGNS
The detail makes the difference.
- TP85B
- Welded base plate
LET’S TALK TP85
Enquire about TP85Build your next order with WEE.
Share your quantity and destination to start a focused quotation.
