TSR600H · Honda GX390
TSR600
Walk-behind Twin-drum Vibratory Roller
A twin-drum roller with chain drive and a mechanical clutch. Choose Honda gasoline or KAMA diesel power, both with electric start and a battery included.
Build your enquiry ＋
Enquire on WhatsAppEngineered for the job.
Shared specifications for TSR600H and TSR600D. Engine and fuel options are listed separately below.
The right equipment.
The right specification.
Choose TSR600H for Honda gasoline power or TSR600D for KAMA diesel power.
Discuss your requirements- Starting system
- Electric start
- Starting battery
- Included
- Net weight (kg)
- 550
- Operating weight (kg)
- 600
- Gross weight (kg)
- 600
- Engine shaft diameter (mm)
- 25
- Engine type / cylinders
- Four-stroke / 1
- Engine speed (rpm)
- 3600
- Drive system
- Chain drive
- Clutch
- Mechanical
- Vibrating drums
- Front and rear
- Drum width (mm)
- 600
- Drum diameter (mm)
- 426
- Centrifugal force (kN)
- 30
- Vibration frequency (Hz)
- 70
- Vibration amplitude (mm)
- 0.6
- Static line load (N/cm)
- 45
- Travel speed (km/h)
- 0-4
- Theoretical gradeability (%)
- 30
- Full width (mm)
- 780
- Length, handle flat (mm)
- 2480
- Height, handle upright (mm)
- 1820
- Sprinkling system
- Gravity-fed
- Water tank (L)
- 20
- Hydraulic tank (L)
- 18
Your market. Your engine.
A focused choice of petrol and diesel configurations.
| Engine | Model | Engine power |
|---|---|---|
| Honda GX390Gasoline · electric start · battery included | TSR600H | 13 HP |
| KAMA 186Diesel · electric start · battery included | TSR600D | 8 kW |
TSR600H: Honda GX390 gasoline engine, 13 HP. TSR600D: KAMA 186 diesel engine, 8 kW.
The stated weights apply to engine-equipped TSR600H and TSR600D. Engine-free supply includes a battery.
25 mm engine shaft required; 25.4 mm shafts are not compatible.
Hydrostatic-clutch versions also use chain transmission and are made to order rather than held as a standard production model. A separate minimum order quantity and a longer production lead time apply.
Look closer.
Three product views and a factory demonstration for each engine configuration.
TSR600H

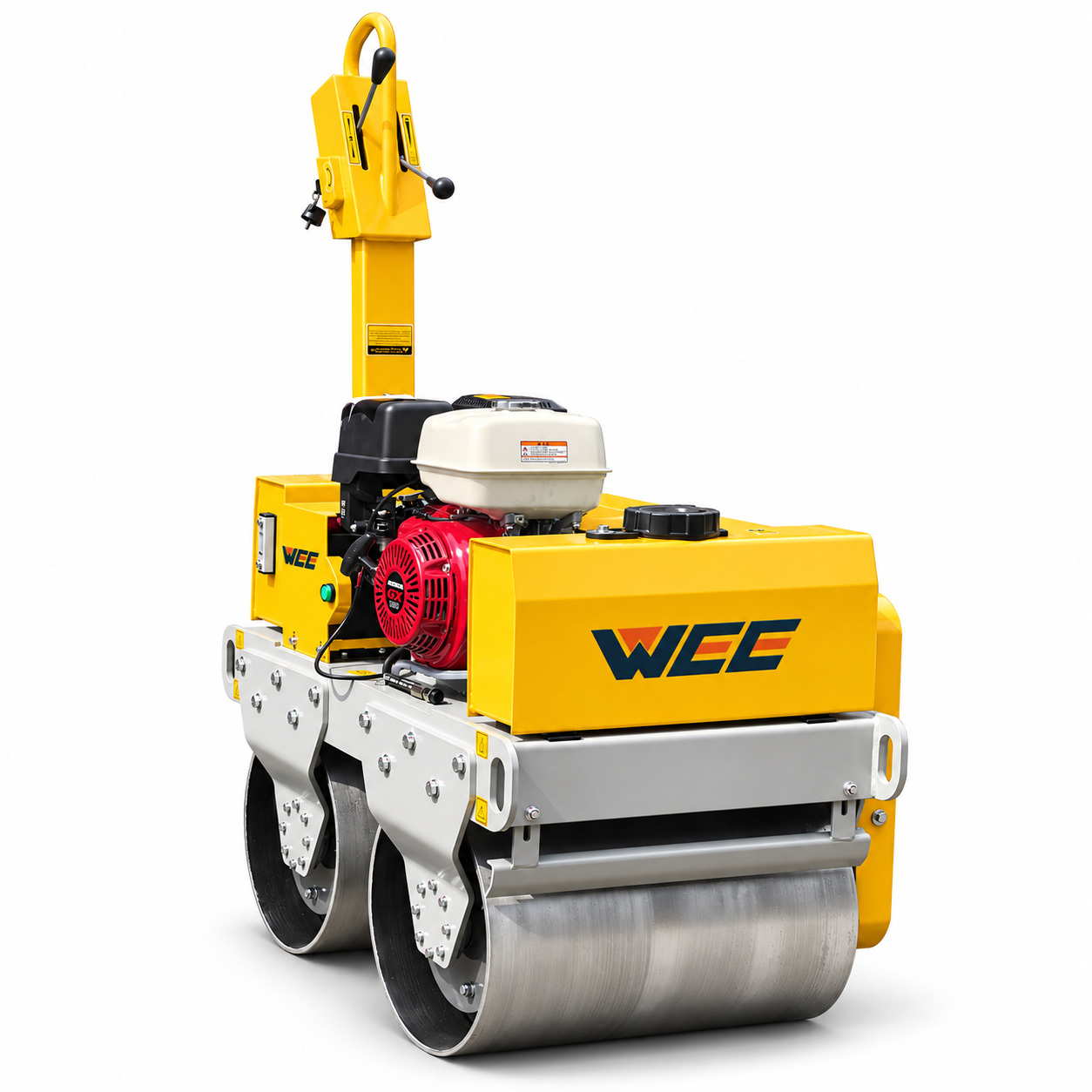

Honda GX390Front three-quarter
TSR600H · Honda GX390

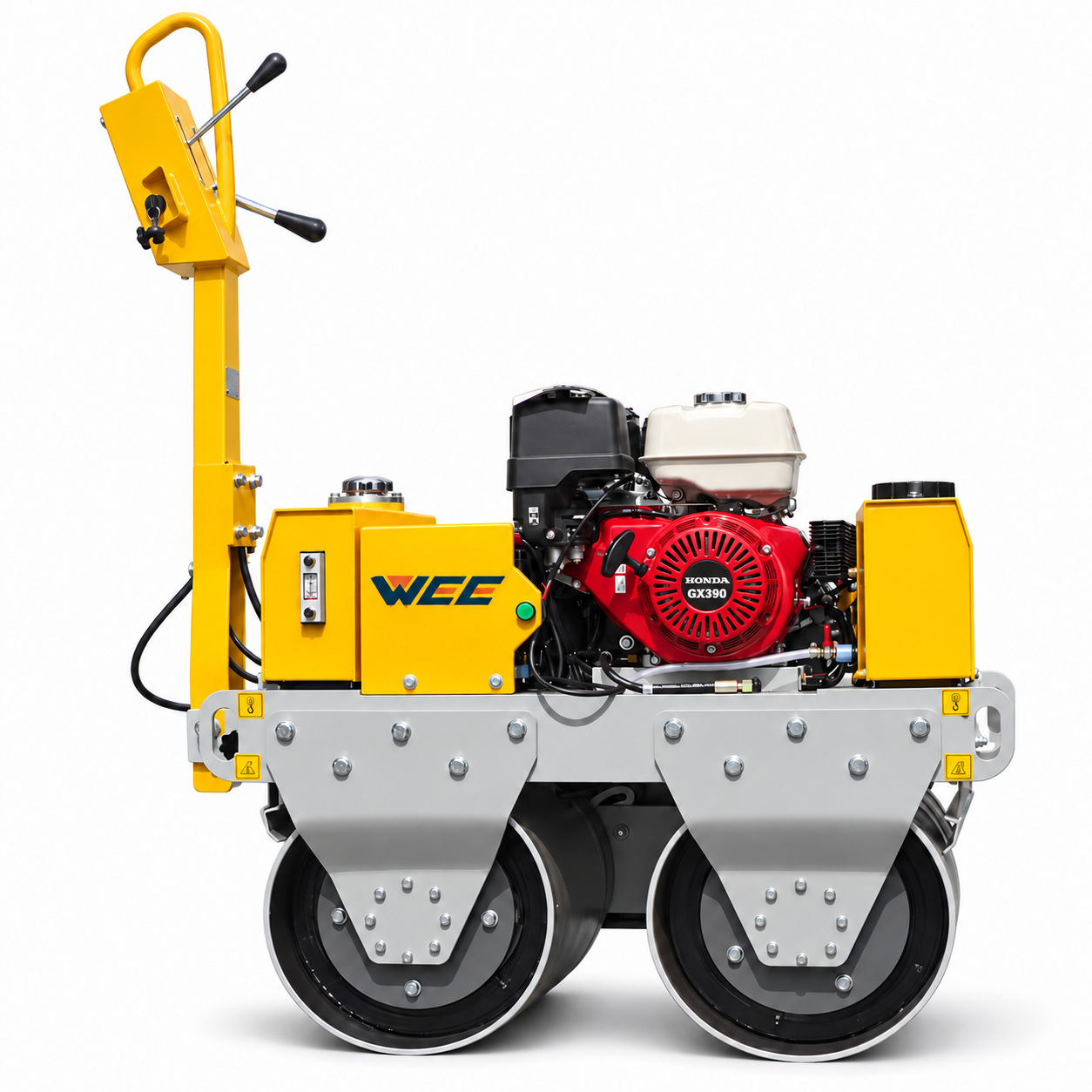

Side view
TSR600H · Honda GX390

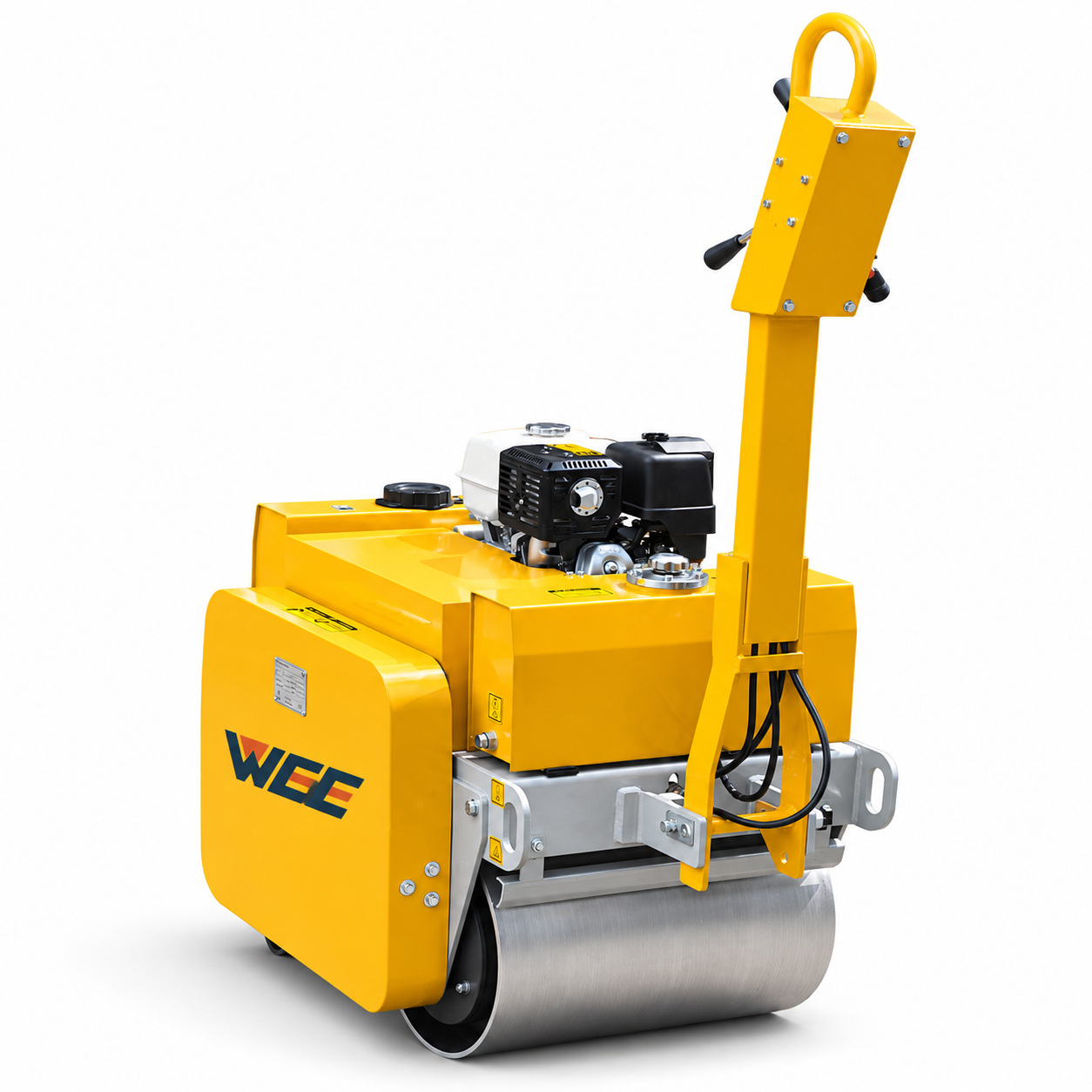

Rear three-quarter
TSR600H · Honda GX390
TSR600H factory demonstration
Honda GX390 configuration · 10.5 seconds · silent footage.
Talk to WEETSR600D
KAMA 186

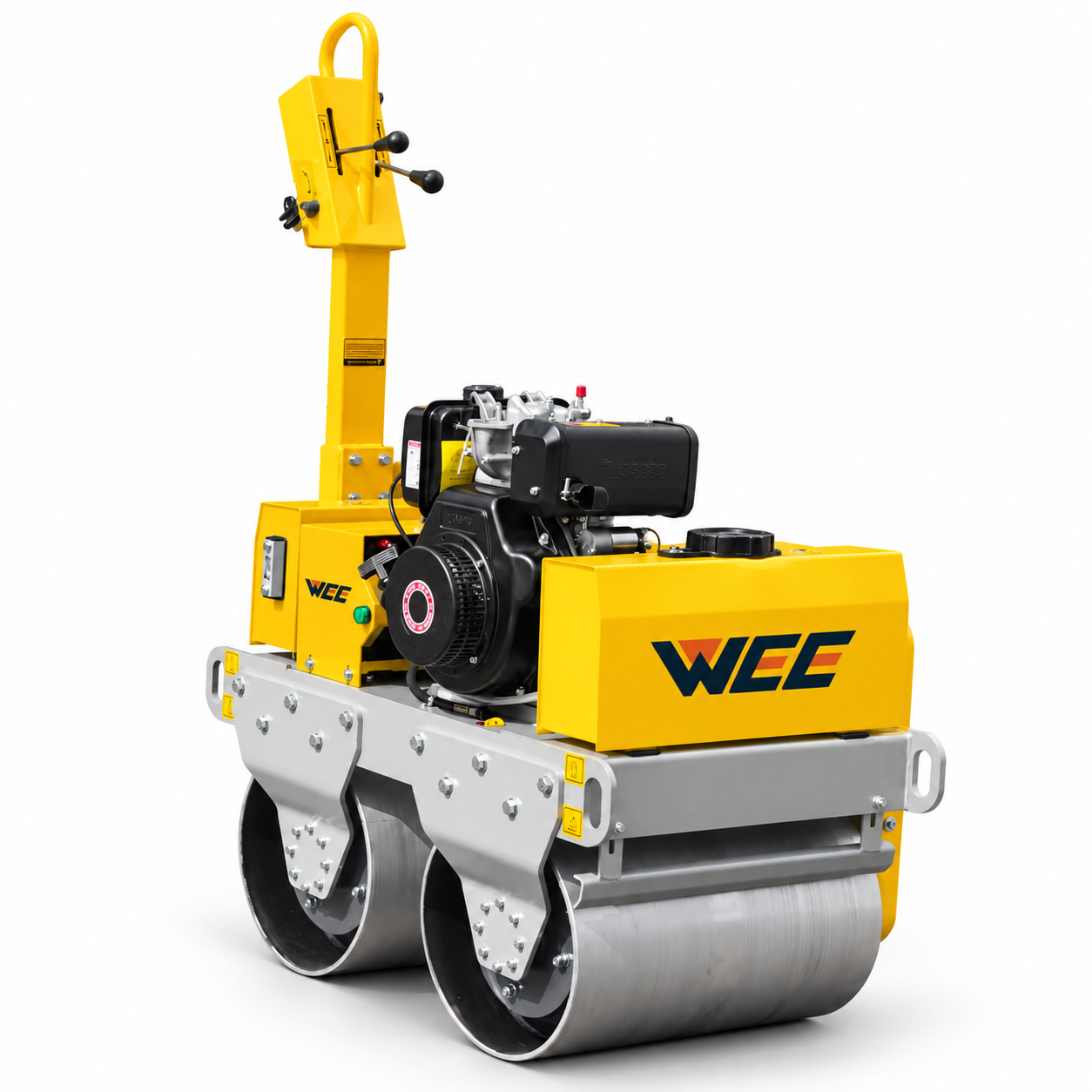

Front three-quarter
TSR600D · KAMA 186

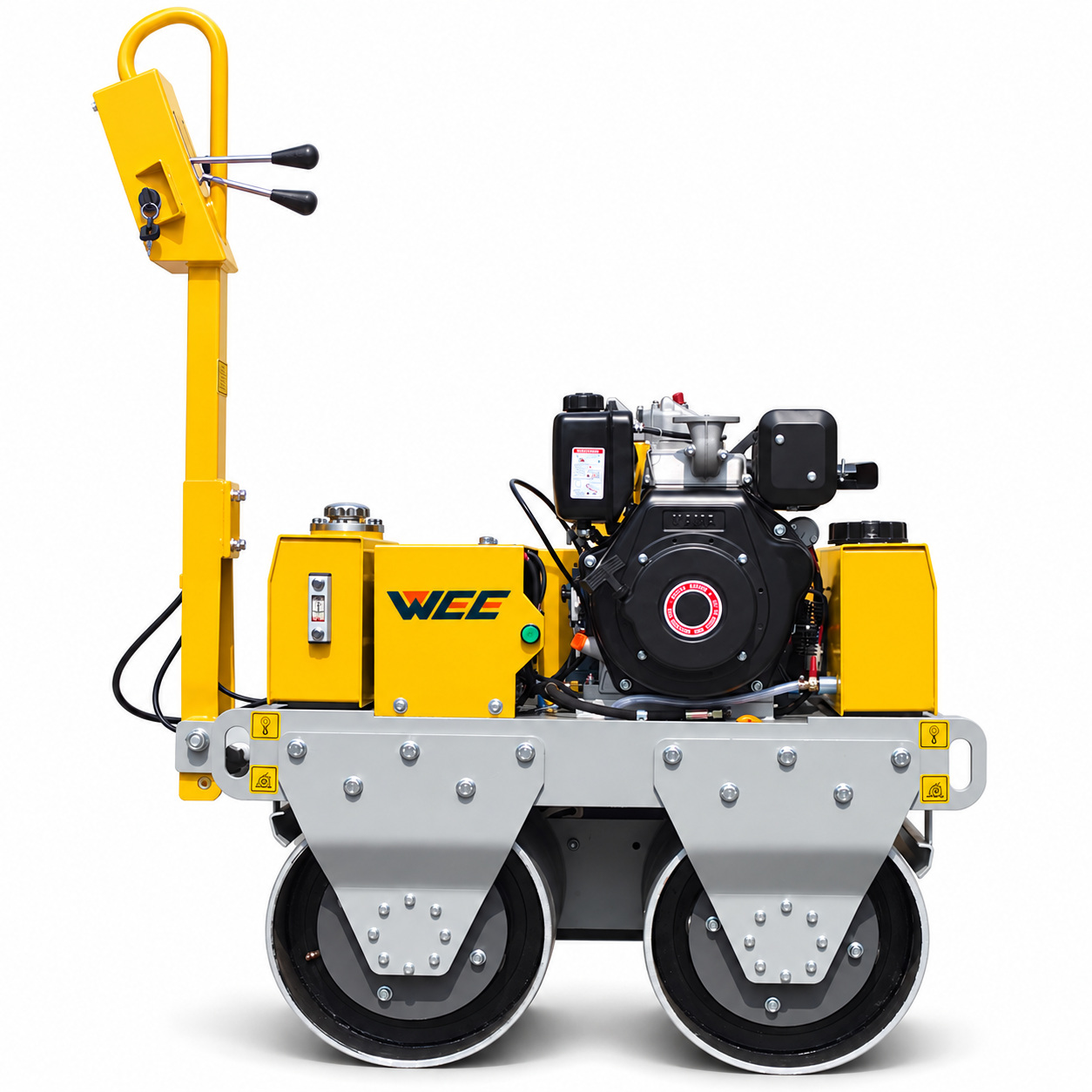

Side view
TSR600D · KAMA 186

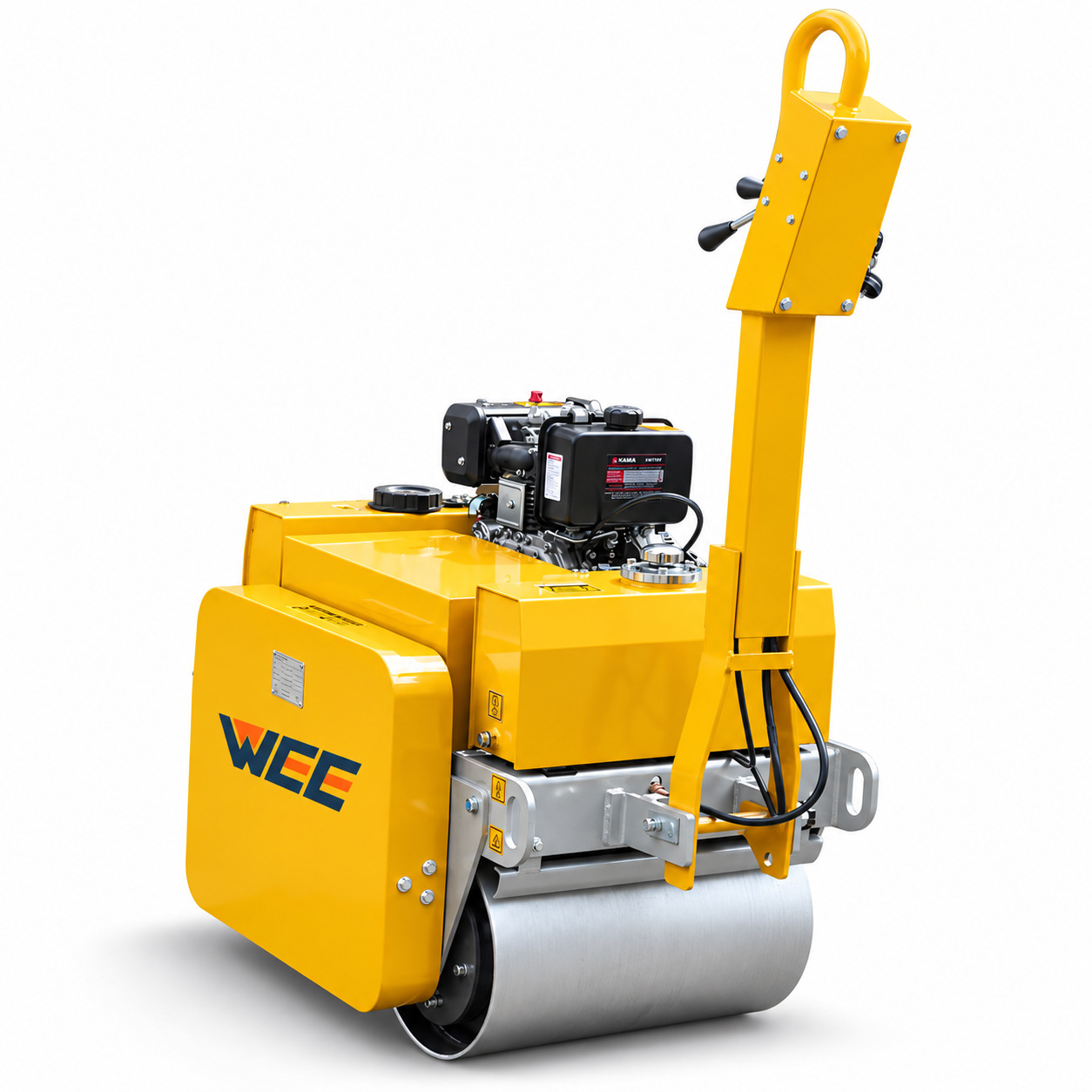

Rear three-quarter
TSR600D · KAMA 186
TSR600D factory demonstration
KAMA 186 configuration · 16.5 seconds · silent footage.
Talk to WEEPacked for the next journey.
Export packing and branding for your market.

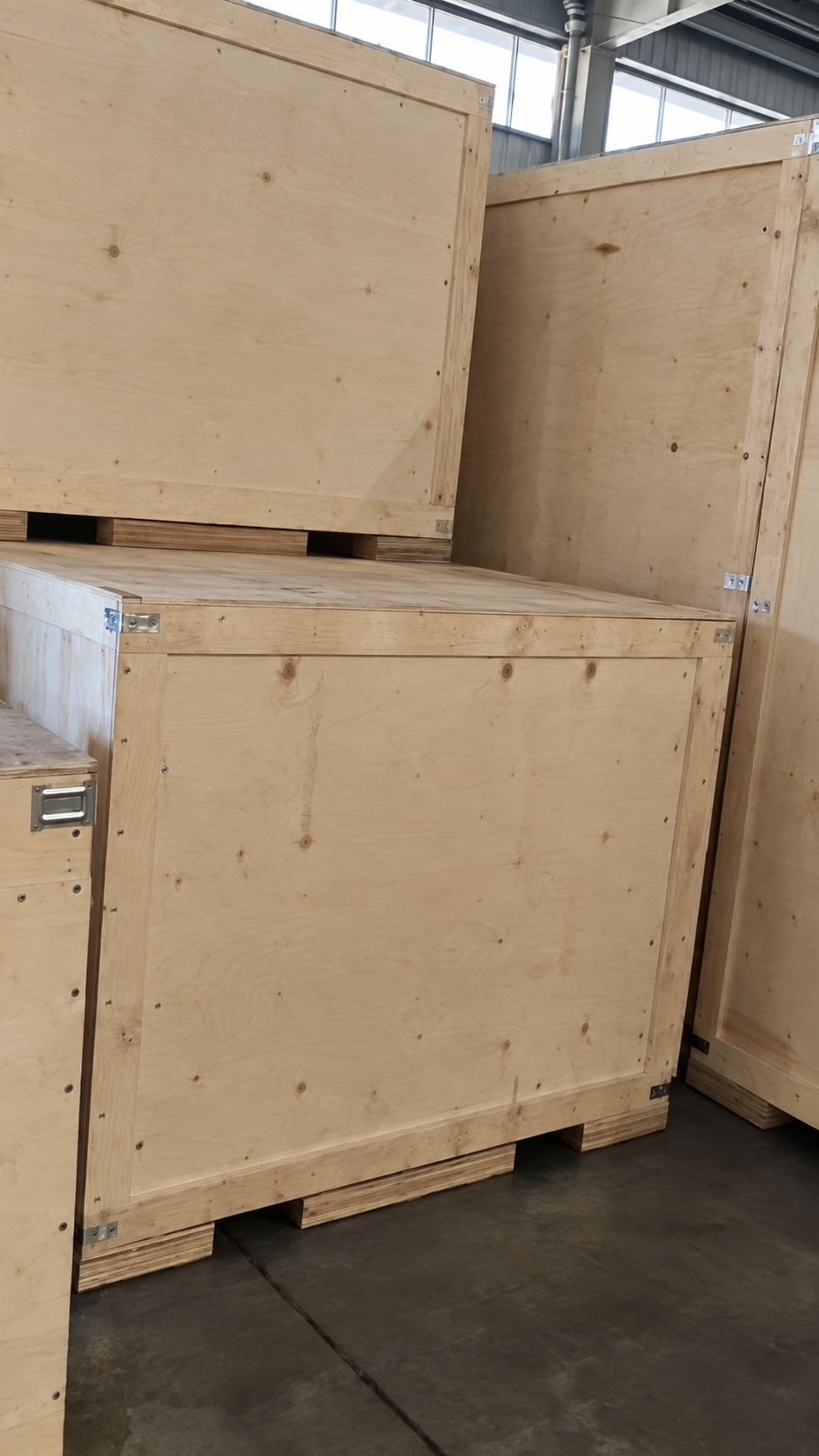

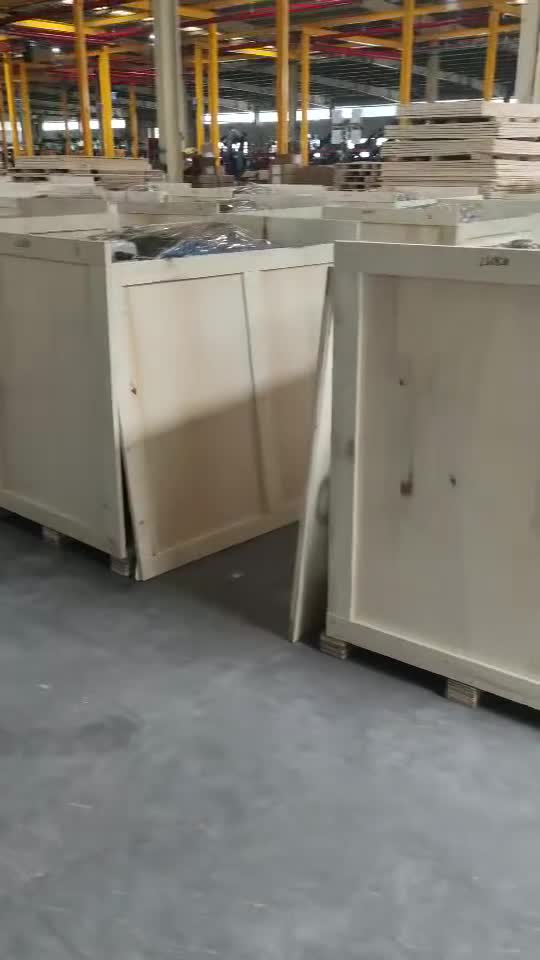

- Standard packing
- Wooden case
- Packing size (L × W × H)
- 1300 × 840 × 1050 mm
- Package volume
- 1.1466 m³
- Net / gross weight
- 550 / 600 kgEngine-equipped TSR600H and TSR600D
Make it your brand.
Customise the machine and presentation for your own range.
- 01Machine colour
- 02Logo
- 03Nameplate
- 04Operation manual
- 05Wooden-case markings
A clear start to your order.
Standard TSR600 supply terms.
- Delivery term
- FOB Shanghai port
- Minimum order
- 1 unit
- Lead time
- 7–30 days
- Payment
- 30% T/T in advance; 70% against copy of bill of lading
- Warranty
- 1 year, excluding wearing parts
Support beyond the machine.
Product information, operating documents and parts support.
TSR600 product guide
H/D configurations, specifications, packing and ordering information.
Open document WEEMachine documentationOperation manual
Send WEE your model and machine details for the correct operating documents.
Contact WEE WEEModel-specific supportParts & service support
Share a part photo, part number and your machine model to discuss the correct replacement.
Contact WEEBuild your next order
with WEE.
Share your preferred configuration, quantity and destination.
